Name: Import single axis photovoltaic tracking system from Chinese factory + Photovoltaic panel self-cleaning system
Brand: Boyue Photovoltaic Technology Co., Ltd.
SKU: Boyue PZ series
Price: 0.11 USD
Availability: InStock

Casa > produtos > Sistema da montagem de painel solar >

Import single axis photovoltaic tracking system from Chinese factory + Photovoltaic panel self-cleaning system

Place of Origin:

Langfang, Hebei, China

Marca:

BoYue Photovoltaic

Certificação:

ISO-9001

Model Number:

Boyue PZ series

Contacte-nos

Peça umas citações

Detalhes do produto

Place of Origin:

langfang，hebei，china

Photovoltaic tracking bracket:

single row flat single axis

Tracking range:

±60°

Driver:

multi-point linear push rod

Standard configuration:

2 rows of vertical installation (2P module long side perpendicular to the main beam) up to 4 strings per bracket

Compatible modules:

Framed modules

Optional foundation type:

direct tamping {column foundation integrated type} pre-drilled/microporous concrete pouring/PHC pipe pile

Column section::

W-type, compatible with IPE, IPEA

Module fixing method:

bolts, rivets, pressure blocks

Marca:

Boyue Photovoltaic

Snow Load:

1.4kn/m2

Control algorithm:

Astronomical algorithm + closed loop(AI Control)

Drive System:

slewing drive

Tracking Accuracy:

<1°

Driving Power:

150w

Warranty:

Structure 10 years, electrical warranty 5 years

Termos do pagamento & do transporte

Minimum Order Quantity

1 pcs

Preço

0.11USD/W

Packaging Details

Plastic film

Delivery Time

5 days -7 days.

Payment Terms

L/C, T/T

PRODUTOS RELACIONADOS

Suporte fotovoltaico de rastreamento por eixo único

Obtenha o melhor preço

Vídeo

Instalação do painel solar de liga de alumínio ajustável para terreno irregular

Obtenha o melhor preço

Vídeo

Sistema de montagem de telhado de painéis solares de neve pesada Ângulo de inclinação 0-60 graus

Obtenha o melhor preço

Vídeo

Sistema de montagem de painéis solares parafusos de solo Fundação de concreto montagem de design personalizado

Obtenha o melhor preço

Contacte-nos

86-159-3061-9958

sales@boyuesolar.com

Contato agora

Descrição do produto

What is a flat single-axis solar tracking bracket?

A flat single-axis solar tracking bracket is a mounting system that rotates solar panels along one horizontal axis (parallel to the ground) to follow the sun’s daily east-west path. This maximizes sunlight exposure, significantly boosting energy generation.

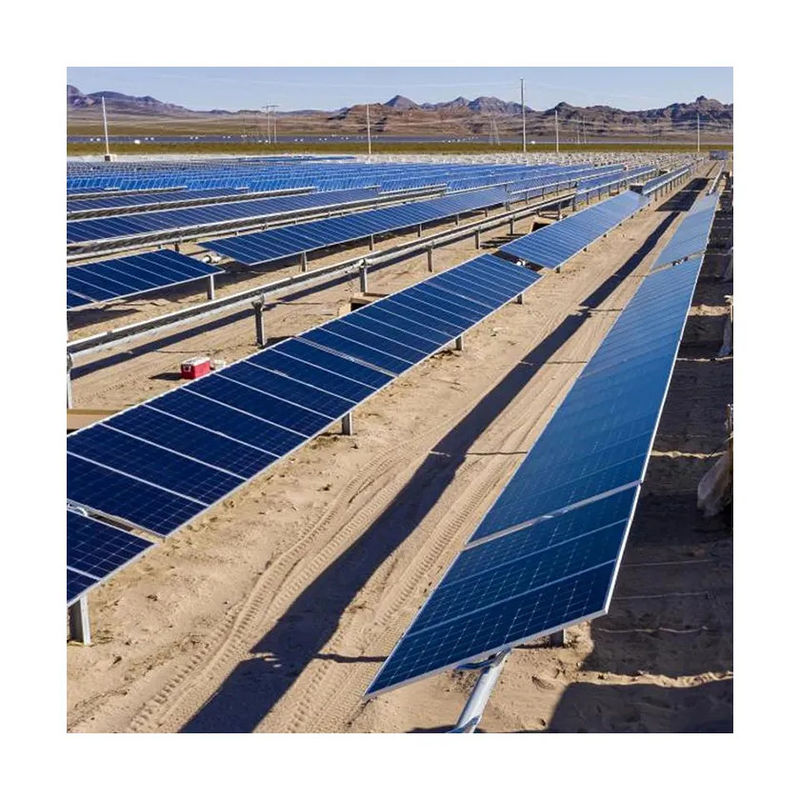

Performance data reveals these systems deliver 20–30% higher power output than fixed-tilt installations. Their efficiency is latitude-dependent: regions below 30° latitude achieve the most substantial gains, making them ideal for low-latitude deployment. Import single axis photovoltaic tracking system from Chinese factory + Photovoltaic panel self-cleaning system 0

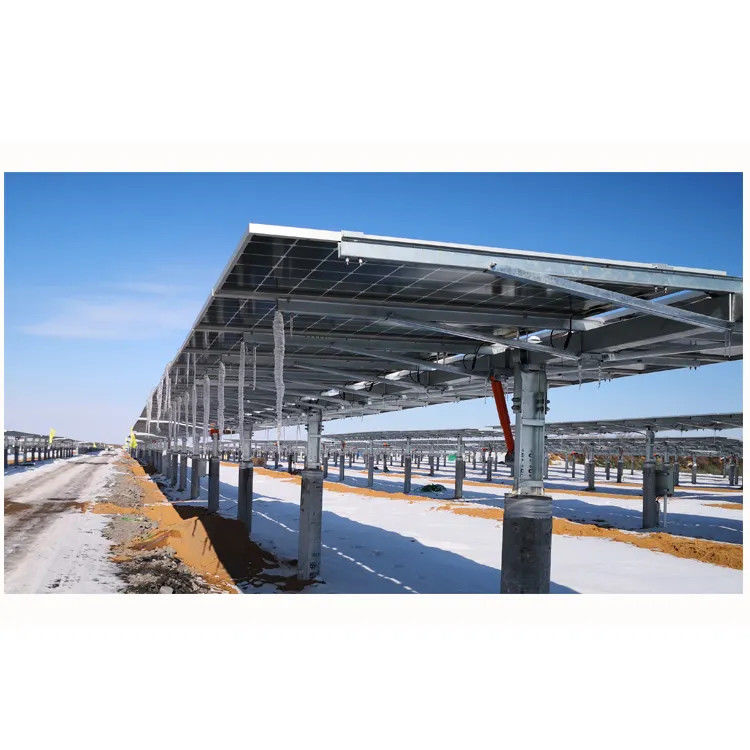

Import single axis photovoltaic tracking system from Chinese factory + Photovoltaic panel self-cleaning system 1

General parameters

Photovoltaic tracking bracket: single row flat single axis
Tracking range: ±60°
Driver: multi-point linear actuator
Standard configuration: 2 rows of vertical installation (2P module long side perpendicular to the main beam) up to 4 strings per bracket
Compatible modules: Framed modules
Optional foundation type: direct tamping (column foundation integrated} pre-drilled/microporous concrete pouring/PHC pipe pile
Column section: W-type, compatible with IPE, IPEA
Module fixing method: bolts, rivets, blocks
Number of columns per MW: [550WD module] -106 columns/MW (120 modules per bracket)
[670Wp module] -102 columns/MVV (102 modules per bracket)
Allowable wind load and snow load: Designed according to project requirements
Back shadow shielding coefficient: 0.8%
Maximum wind speed: 42m/s
Terrain adaptability north-south slope: ≤15%

Structure

Material: high-strength steel material
Coating: hot-dip galvanizing HDG, pre-galvanized and magnesium-aluminum-zinc
Electrical control specification
Controller: Controller with microprocessor
Protection level: IP65
Tracking method: Astronomical algorithm + Zhihe intelligent tracking technology
Advanced wind speed control system: Intelligent gust alarm
Wind speed sensor: Three-cup type/ultrasonic type
Nighttime stillness: optional
Communication method: Wired mode: RS485
Wireless mode: LoRa/Zigbee
Adaptive environment: Altitude: <4000 meters
Temperature: 30℃ to 60℃*
Sensor: High-precision angle sensor
Motor model: DC motor: 0.2kW
Power supply form: Grid power/string power/solar panel self-powered

Support

High wind protection, night return mode
Heavy rain cleaning mode
Snow removal mode

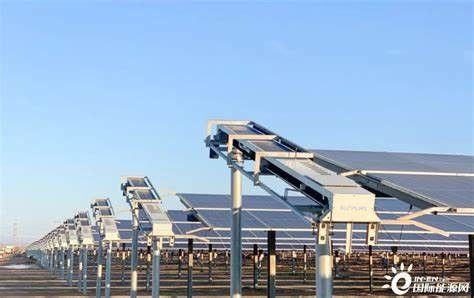

Automatic cleaning robot
